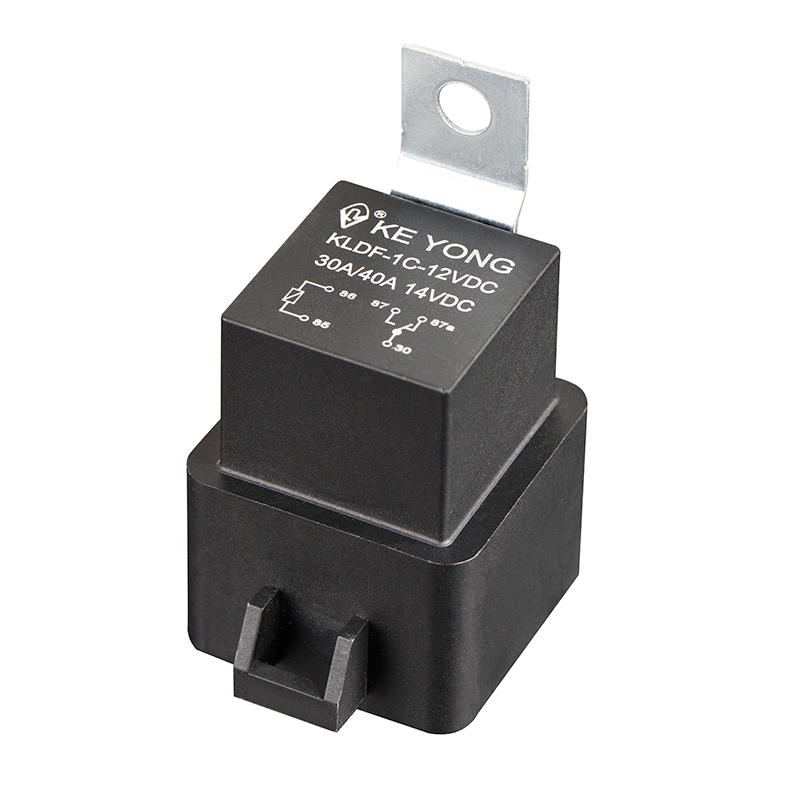

NINGBO KEYONG JINGSHENG ELECTRICAL APPLIANCE CO., LTD. presents the Shrouded Type Automotive Relay KLDF (V8) Plug-In PCB Mini ISO Relay, designed for 60A high-current switching in automotive and lamp accessory applications. It supports PC pin, quick connect, and PCB mounting, with dustproof and sealed options for improved reliability. The compact Mini ISO structure ensures easy integration, while optional diode, reverse diode, or resistor configurations enhance circuit protection. With a shrouded housing, standard ISO terminal, and -40°C to 125°C operating range, it delivers stable performance and long service life. Manufactured by KEYONG, a professional relay manufacturer in China, this RoHS-compliant relay is a cost-effective solution for automotive and industrial power systems.
A shrouded type automotive relay is a relay with a protective cover structure designed to isolate and protect internal contacts from dust, moisture, and external contamination. This design significantly reduces the risk of short circuit, arcing damage, and contact failure, making it suitable for critical automotive electrical systems.
Compared with standard relays, the shrouded design enhances:
●Electrical safety
●Mechanical durability
●Environmental resistance
In automotive applications, relays are exposed to vibration, heat, and electrical load variations. A shrouded structure helps to:
●Prevent dust and contamination from entering contact points
●Reduce risk of electrical arcing and failure
●Improve insulation performance
●Extend relay lifespan under continuous operation
For OEM manufacturers and automotive system integrators, this design significantly improves system reliability and safety compliance.

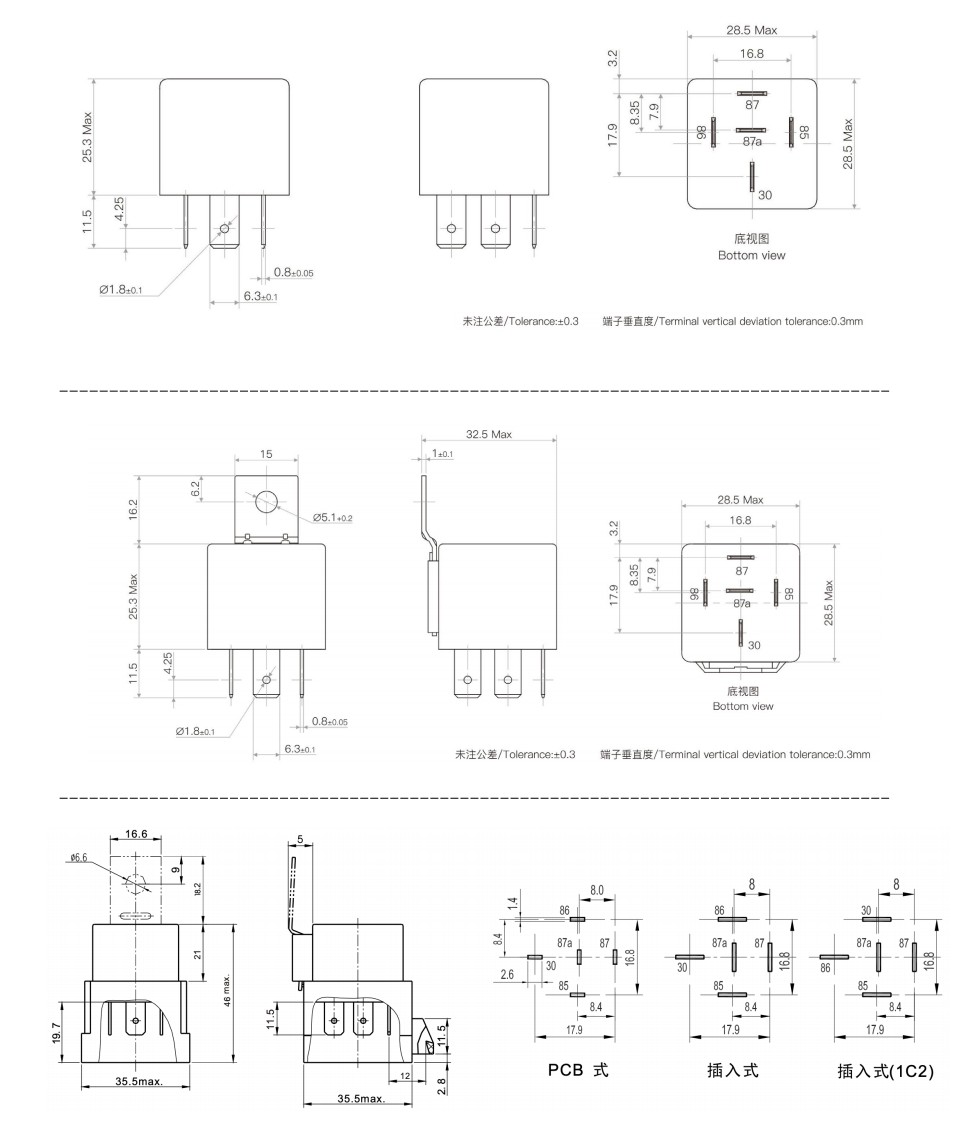

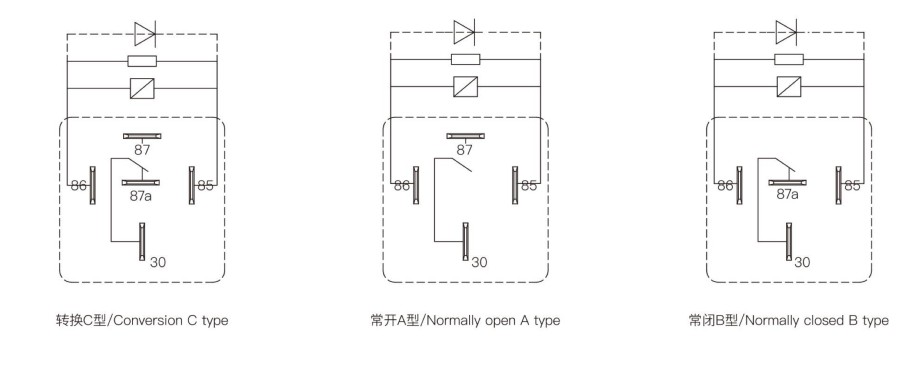

| Contact arrangment | A/B/C |
| Voltage drop(at 10A) | ≤200mV |
| Contact material | Silver alloy:AgSnO₂In₂O₃、AgSnO₂、AgNi |
| Contact rating | 30A/40A/60A 14VDC |
| Max switching voltage | See“Load limit curve” |
| Max switching current | 60A |
| Min contact load | 1A 6VDC |
| Electrical endurance(Frequency:900 ops/h) | 1×10⁵ops |
| Mechanical endurance(Frequency:18000 ops/h) | 1×10⁷ops |
| Power consumption(W) | 1.6W | 1.8W | 1.6W | 1.8W | 1.8W | 2.0W |
| Nominal voltage(VDC) | 12 | 12 | 24 | 24 | 24 | 24 |
| Coil resistance(Q±10%) | 90 | 90 | 360 | 360 | 320 | 320 |
| Parallel resistance(2) |
|
680 |
|
2700 |
|
2700 |
| Pick-up voltage(Max) | 65%(Nominal voltage) | |||||
| Drop-out voltage(Min) | 10%(Nominal voltage) | |||||
| Max allowable overdrive voltage(VDC) | 150%(Nominal voltage) | |||||
| Insulation level | Class B/Class F | |
| Insulation resistance | 100MΩ(500VDC) | |
| Dielectric strength(Leakage current 1mA) | Dielectric strength (Between coil and contacts) | 500VAC /minute |
|
|
Dielectric strength (Between open contacts) | 500VAC /minute |
| Operate time(at nominal voltage) | ≤10ms | |
| Release time(without diode)(at nominal voltage) | ≤10ms | |
| Humidity | 5%～85%RH | |
| Ambient temperature | -40℃~+125℃ | |
| Vibration resistance | 5Hz~22.3Hz 10mm/Double amplitude | |
|
|
22.3Hz~500Hz 98m/s² | |
| Shock resistance | 294m/s² | |
| Weight | Approx 46g | |
| Construction | Dustproof type Sealed type | |
The KEYONG Shrouded Type Automotive Relay is widely used in multiple industries:
●Automotive lighting systems (headlamps, fog lamps)
●Engine control and ECU systems
●Air conditioning and HVAC systems
●Electric windows and seat control modules
●Commercial vehicles and heavy-duty trucks
●Automotive electrical protection circuits
It is a trusted solution for manufacturers requiring stable automotive relay performance in complex environments.
Q1: What is the main advantage of a shrouded automotive relay?
It provides enhanced protection against dust, moisture, and electrical interference, improving safety and extending service life.
Q2: Can KEYONG supply customized relay specifications?
Yes. As a professional relay factory in China, KEYONG supports OEM customization based on voltage, current, and installation requirements.
Q3: Is this relay suitable for high-temperature automotive environments?
Yes. The relay is designed for -40°C to +125°C operation, making it suitable for engine compartments and heavy-duty applications.
Q4: How does KEYONG ensure product quality consistency?
We use automated production lines, full testing procedures, and ISO 9001 quality management to ensure stable batch-to-batch performance.
Ningbo Keyong Jingsheng Electrical Appliance Co., Ltd. is a professional manufacturer specializing in automotive relays, power relays, signal relays, and new energy high-current relays, with more than ten years of production experience. Our factory in Ningbo covers 12,000 square meters, equipped with multiple automated production lines and precision testing systems.
Production capability highlights:
●Annual output: over 80 million relays
●Fully automated assembly & inspection lines
●ISO 9001:2015 quality management system
●Strict in-process quality control at every stage
This ensures consistent performance and stable supply for global B2B customers searching for a reliable China relay factory or supplier.
