Summary: Extra Slim PCB Power Relays are compact, reliable, and versatile components designed to optimize electronic systems. This article explores their advantages, applications, and selection criteria, helping engineers and designers solve common pain points in modern PCB designs.

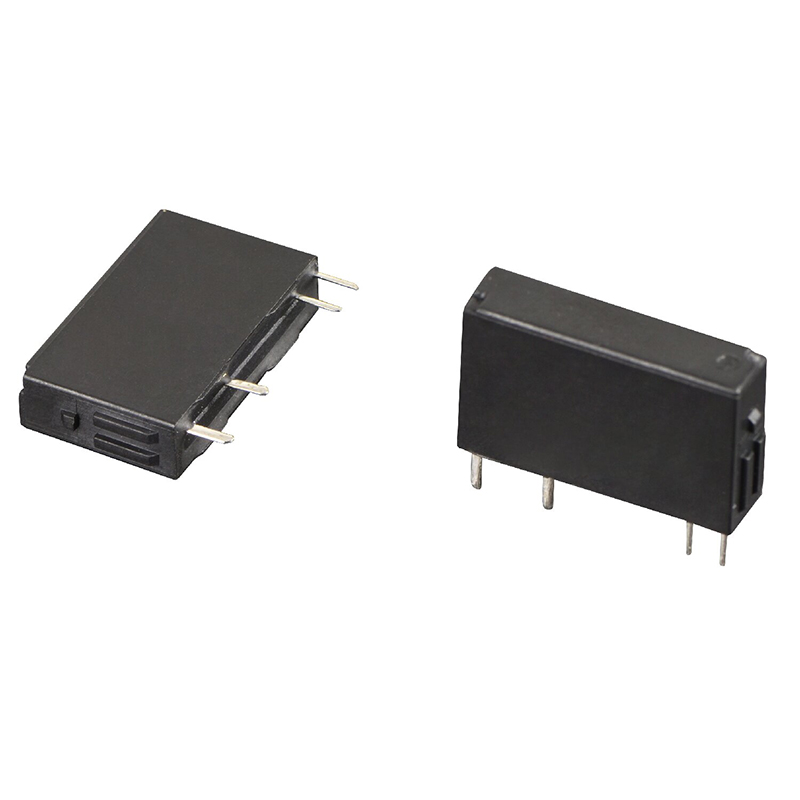

An Extra Slim PCB Power Relay is a type of electromechanical switch designed to control high power circuits using a low power signal while maintaining a compact footprint. Unlike traditional relays, these slim models save valuable PCB space without compromising performance.
| Specification | Typical Value |
|---|---|
| Contact Rating | 10A 250VAC / 10A 30VDC |
| Coil Voltage | 5V, 12V, 24V |
| Insulation Resistance | 100 MΩ minimum |
| Operating Temperature | -40°C to +85°C |
Modern electronic designs demand high efficiency, reliability, and compact size. Extra Slim PCB Power Relays meet these requirements, addressing common pain points in PCB development:
The Extra Slim PCB Power Relay operates on the principle of electromagnetic actuation. When a small current passes through the coil, it generates a magnetic field that moves the internal contact mechanism to open or close the circuit.
This simple yet efficient mechanism allows reliable switching of high-current loads with minimal control input, making it ideal for automated and compact systems.
As a leading relay manufacturer, KEYONG offers a series of Extra Slim PCB Power Relays with several distinct advantages:
These relays are widely used across various sectors, addressing key challenges in compact electronic designs:
The compact size and reliable switching performance make Extra Slim PCB Power Relays a top choice for engineers aiming for high-density and high-performance PCB layouts.
Choosing the right relay can be challenging. KEYONG recommends considering these key factors:
| Factor | Recommendation |
|---|---|
| Load Type | Ensure the relay supports the intended AC or DC load |
| Coil Voltage | Select a voltage compatible with your control circuit |
| Switching Frequency | Choose a relay rated for frequent switching if needed |
| Environmental Conditions | Check temperature and humidity tolerance for the application |
| Mounting Space | Measure PCB space and ensure slim profile fits |
A: Extra slim relays are significantly thinner, saving PCB space while maintaining similar electrical performance.
A: Yes, despite their compact size, they can switch loads up to 10A or more, depending on the model.
A: Yes, all KEYONG relays comply with RoHS and other international environmental standards.
A: Most KEYONG relays offer over 100,000 electrical cycles and 10 million mechanical cycles under standard conditions.
Discover how KEYONG Extra Slim PCB Power Relays can transform your electronic projects. For detailed specifications, personalized solutions, and bulk orders, contact us today and elevate your design efficiency.
