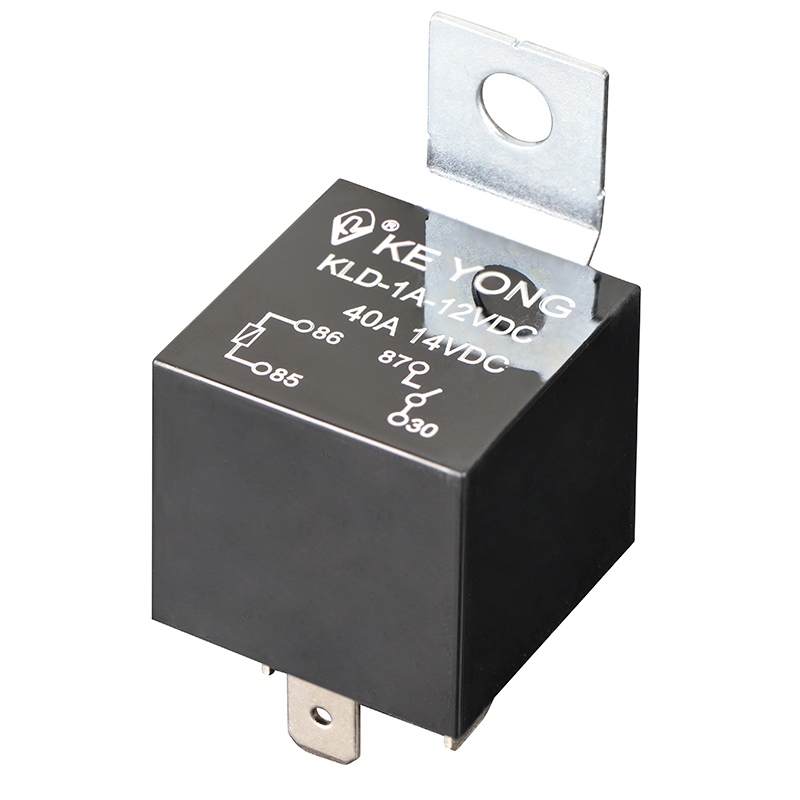

40A 4 PIN Switching Automotive Power Relay manufactured by NINGBO KEYONG JINGSHENG ELECTRICAL APPLIANCE CO., LTD. is an electromechanical switch designed to control high-current electrical circuits in vehicles using a low-current control signal. It acts as a “remote-controlled power switch,” enabling safe and efficient operation of automotive components such as headlights, horns, fuel pumps, fans, air conditioning systems, and other high-load accessories.
This type of relay is widely used in automotive electrical systems, industrial equipment, and aftermarket vehicle modifications, where reliable high-current switching is required without overloading the control switch or ECU.
The relay works by using a small electrical signal (coil input) to activate an internal electromagnetic switch:
A low-current signal energizes the coil (PIN 85/86 in standard relay logic)
The electromagnetic force closes or opens the internal contacts
High current (up to 40A) flows through the load circuit (PIN 30/87)
This allows a low-power control system to safely manage high-power devices without direct load exposure.
1. Load Current Requirement
Choose a relay with at least 20–30% margin above actual load
For 30A load → choose 40A relay for safety
2. Pin Configuration
4-pin (SPST) → simplest ON/OFF switching
5-pin (SPDT) → switching between two outputs
3. Coil Voltage
Common options: 12V DC (standard passenger vehicles)
Some applications may require 24V (commercial vehicles)
4. Environmental Conditions
Temperature resistance (-40°C to 125°C preferred)
Dustproof or sealed structure for engine bay use

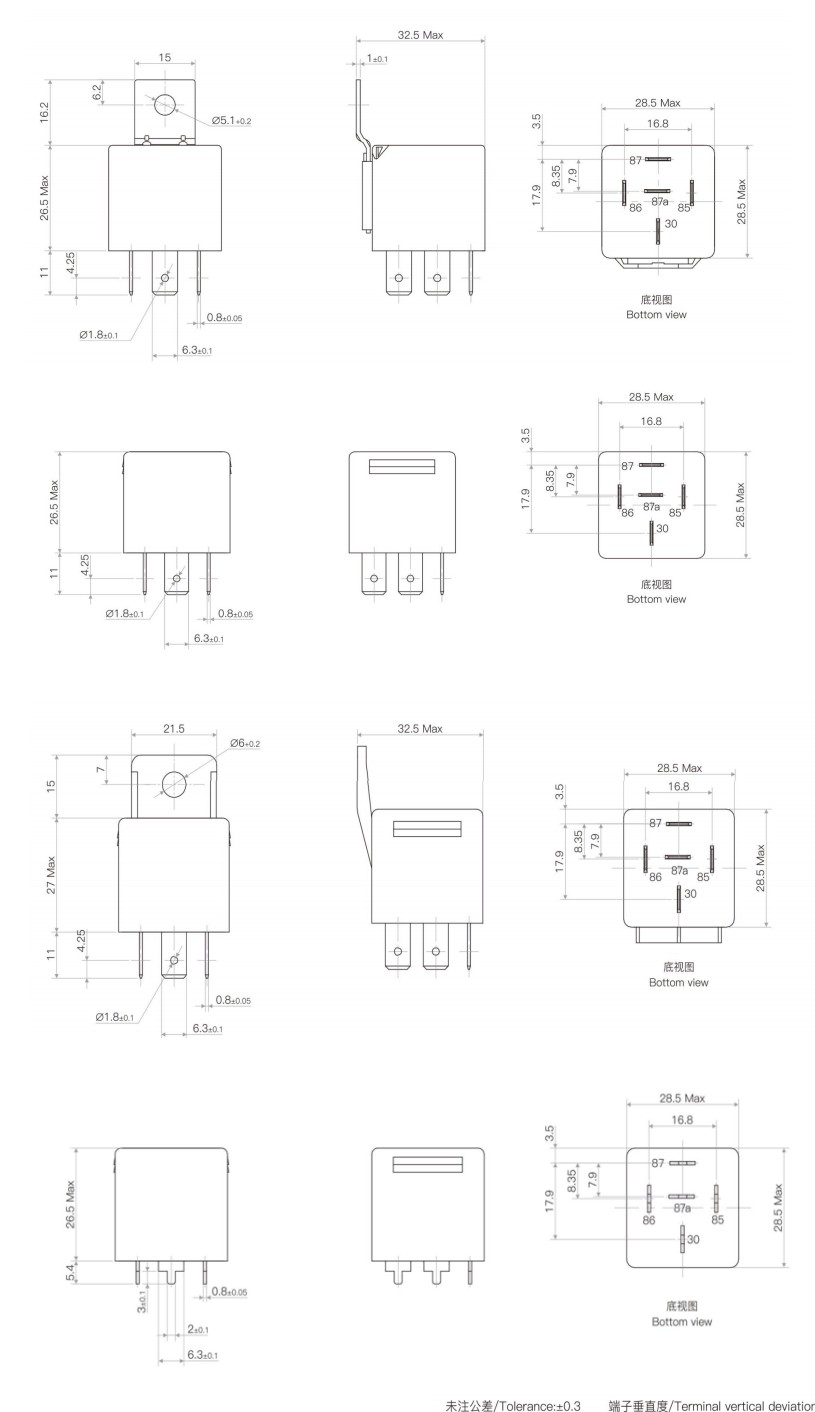

5. Mounting Type
Plug-in type (standard socket)
PCB mount (electronic integration)
Bracket type (industrial installation)
| Contact arrangment | 1/2A,1/2B 1/2C |
| Voltage drop(at 10A) | ≤200mV |
| Contact material | Silver alloy:AgSnO₂ In₂O₃、AgSnO₂、AgNi |
| Contact rating | 30A/40A/60A 14VDC |
| Max switching voltage | See“Load limit curve” |
| Max switching current | 60A(Resistive 14VDC) |
| Min contact load | 1A 6VDC |
| Electrical endurance(Frequency:900 ops/h) | 1×10⁵ops |
| Mechanical endurance(Frequency:18000 ops/h) | 1×10⁷ops |
| Power consumption(W) | 1.6W | 1.8W | 1.6W | 1.8W | 1.8W | 2.0W |
| Nominal voltage(VDC) | 12 | 12 | 24 | 24 | 24 | 24 |
| Coil resistance(Q±10%) | 90 | 90 | 360 | 360 | 320 | 320 |
| Parallel resistance(Ω) |
|
680 |
|
2700 |
|
2700 |
| Pick-up voltage(Max) | 65%(Nominal voltage) | |||||
| Drop-out voltage(Min) | 10%(Nominal voltage) | |||||
| Max allowable overdrive voltage(VDC) | 150%(Nominal voltage) | |||||
| nsulation level | Class B/Class F | |
| nsulation resistance | 100MΩ(500VDC) | |
| Dielectric strength(Leakage current 1mA) | Dielectric strength(Between coil and contacts) | 500VAC minute |
| Dielectric strength(Between open contacts) | 500VAC minute | |
| Operate time(at nominal voltage) | ≤10ms | |
| Release time(without diode)(at nominal voltage) | ≤10ms | |
| Humidity | 5%～85%RH | |
| Ambient temperature | -40℃~+125℃ | |
| Vibration resistance | 5Hz~22.3Hz 10mm Double amplitude | |
| 22.3Hz~500Hz 98m/s² | ||
| Shock resistance | 294m/s² | |
| Weight | Approx 36g | |
| Construction | Dustproof | |
| Feature | Standard Low-End Relay | 40A Automotive Power Relay |
|---|---|---|
| Current Capacity | 20–30A | ✔ Up to 40A |
| Durability | Medium | ✔ High-cycle endurance |
| Heat Resistance | Limited | ✔ Wide temperature range |
| Application Scope | Basic circuits | ✔ Heavy-duty automotive systems |
| Reliability | Moderate | ✔ Stable under vibration/load |
Compared with generic low-cost relays, a high-quality 40A automotive relay offers better thermal stability, longer electrical life, and more consistent switching performance—especially in high-load environments.
1. High Current Capacity (40A Rating)
●Supports up to 40 amps switching load
●Suitable for heavy-duty automotive applications
●Stable performance under continuous operation
2. Compact 4-Pin Structure
●Simple wiring design
●Easy installation and replacement
●Compatible with standard ISO relay sockets
3. Reliable Switching Performance
●Strong electromagnetic coil design
●Low contact resistance
●Stable operation under vibration and road conditions
4. Wide Application Range
●Automotive lighting systems
●Cooling fans and HVAC systems
●Fuel pumps and ECU control circuits
●Modified vehicles and aftermarket accessories
5. Cost-Effective Control Solution
●Reduces load on switches and control modules
●Extends lifespan of electrical components
●Minimizes wiring complexity
●Automotive headlight control systems
●Horn and alarm systems
●Electric cooling fan control
●Fuel pump switching
●Modification wiring harnesses
●Industrial automation control circuits
●Marine and off-road vehicle systems
Q1: What does “4 PIN” mean in this relay?
A 4-pin relay includes two coil terminals (85/86) and two switching terminals (30/87), used for simple ON/OFF control.
Q2: Can a 40A relay replace a 30A relay?
Yes. A 40A relay can safely replace a 30A relay as long as the socket and pin layout match.
Q3: What happens if the load exceeds 40A?
Exceeding rated current may cause overheating, contact welding, or relay failure. Always choose a relay with a safety margin.
Q4: Is it suitable for engine bay installation?
Yes, if the relay is rated for high temperature (typically -40°C to 125°C) and has dustproof protection.
The 40A 4 Pin Switching Automotive Power Relay is a critical component for safe and efficient high-current control in automotive and industrial systems. With its strong load capacity, compact design, and stable switching performance, it is an ideal solution for both OEM manufacturers and aftermarket applications.
For buyers and engineers, selecting a reliable relay ensures not only system stability but also long-term safety and reduced maintenance costs.
