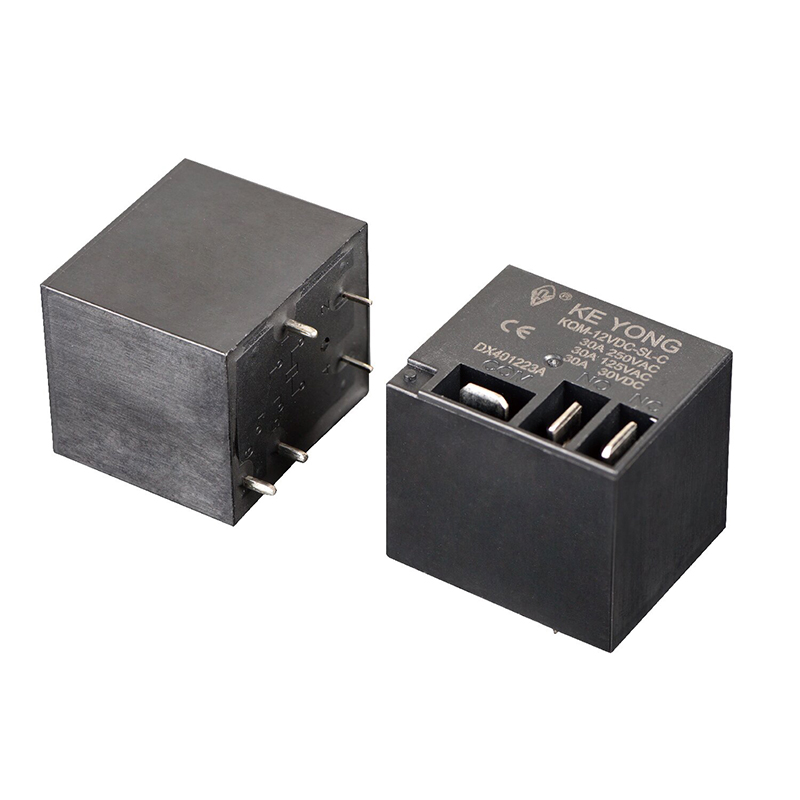

KEYONG Miniature High Power Relay For Quick-connect and PCB Terminals is engineered for high-load switching applications that demand compact size, stable performance, and long-term reliability. Manufactured by KEYONG, a professional China relay manufacturer and factory with more than a decade of production experience, this relay is designed to meet the needs of appliance manufacturers, industrial control system integrators, automotive electronics suppliers, and OEM equipment producers worldwide.
As a trusted China relay supplier, KEYONG combines automated precision manufacturing, strict ISO9001 quality management, and international certifications to deliver dependable relay solutions for global procurement projects. This miniature high power relay offers the ideal balance of compact structure, high switching capacity, and flexible terminal options, making it suitable for both quick-connect and PCB mounting applications.

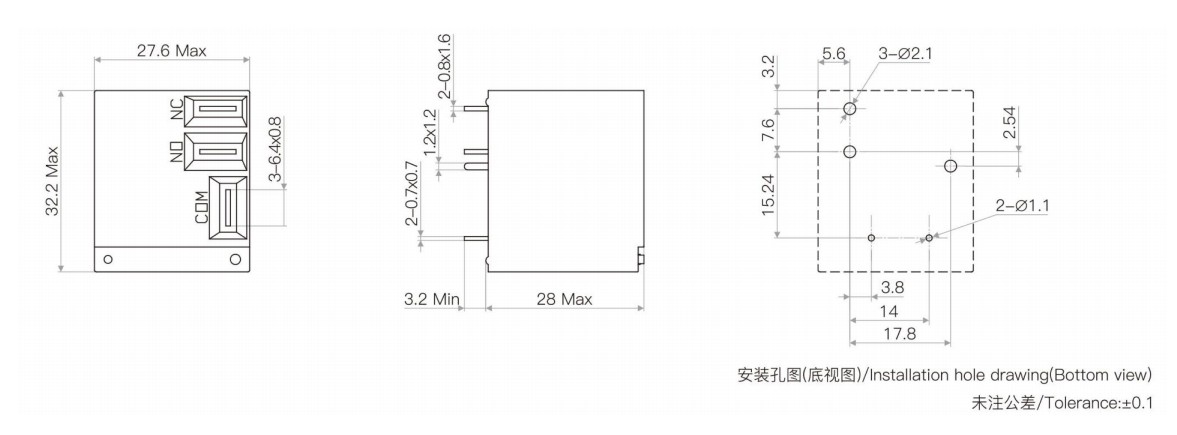

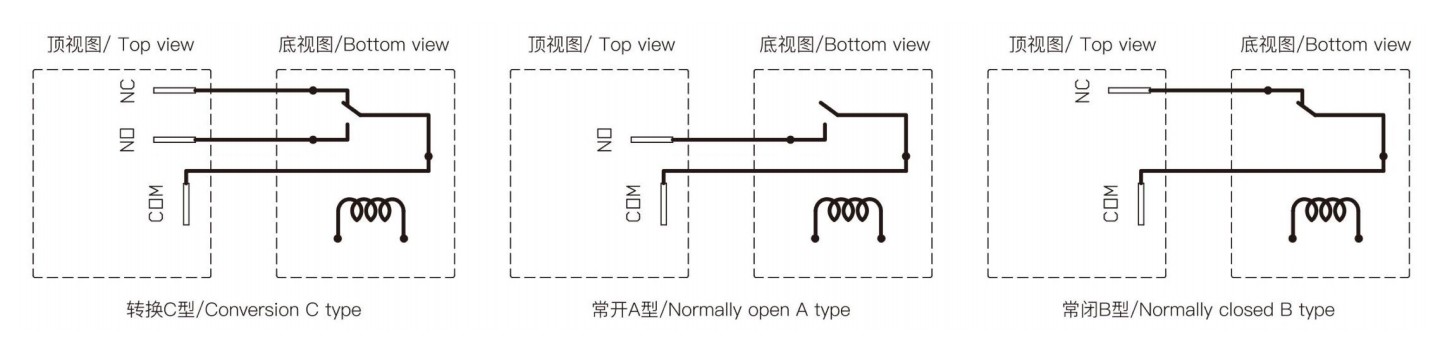

| Contact arrangment | A,B,C |
| Contact resistance | ≤100mΩ(1A 6VDC) |
| Contact material | Silver alloy:AgSnO₂ In₂O₂、AgSnO₂、AgNi |
| Contact rating(Res.load) | 20A/30A/50A 250VAC,1-1/2HP240VAC,1HP 120VAC |
| Max switching voltage | 250VAC |
| Max switching current | 50A |
| Max switching power | 7500VA |
| Electrical endurance(Frequency:360 ops/h) | 1×10⁵ops/1×10⁴ops |
| Mechanical endurance(Frequency:18000 ops/h) | 1×10⁷ops |
| Power consumption(W) | 0.9W(L) | |||||||
| Nominal voltage(VDC) | 05 | 06 | 09 | 12 | 18 | 24 | 36 | 48 |
| Coil resistance(Ω±10%) | 27.7 | 40 | 90 | 160 | 360 | 640 | 1440 | 2560 |
| Pick-up voltage(Max) | 75%(Nominal voltage) | |||||||
| Drop-out voltage(Min) | 10%(Nominal voltage) | |||||||
| Max allowable overdrive voltage(VDC) | 130%(Nominal voltage) | |||||||
| Insulation level | B/F | |
| Insulation resistance | 1000MQ(500VDC) | |
| Dielectric strength(Leakage current 1mA) | Between coiland contacts | 2000VAC 1min |
|
|
Between open contacts | 1500VAC 1min |
| Operate time(at nominal voltage) | ≤15ms | |
| Release time(without diode)(at nominal voltage) | ≤10ms | |
| Humidity | 5%～85%RH | |
| Ambient temperature | -40℃~+85℃/+105℃ | |
| Shock resistance | Functional | 98m/s² |
|
|
Destructive | 980m/s² |
| Vibration resistance(Double amplitude) | 10Hz~55Hz 1.5mm | |
| Weight | Approx 34g | |
| Construction | Sealed Flux proofed | |
The Miniature High Power Relay For Quick-connect and PCB Terminals is commonly used in:
●Air conditioners
●Water heaters
●Smart home control systems
●Industrial automation equipment
●Communication control modules
●Power distribution systems
●Security monitoring devices
●Charging and energy storage equipment
Its compact footprint and flexible installation methods make it an excellent choice for modern electronic assemblies requiring high-density PCB layouts.
1.Is this relay suitable for high-current switching applications?
Yes. The KEYONG Miniature High Power Relay For Quick-connect and PCB Terminals is designed for stable high-load switching performance while maintaining compact dimensions. It is suitable for demanding switching environments such as appliance control boards and industrial modules.
2.Can it support both PCB and external wiring installation?
Yes. This relay features quick-connect and PCB terminal configurations, allowing flexible installation for different equipment designs. This reduces redesign costs for OEM customers.
3.How does KEYONG ensure product consistency?
As an experienced China relay manufacturer, KEYONG uses automated winding, assembly, soldering, parameter adjustment, and industrial vision inspection systems to guarantee stable production quality. Every batch undergoes rigorous testing before shipment.
4.Are customization services available?
Yes. As a professional China supplier and relay factory, KEYONG supports customized coil voltages, terminal structures, contact materials, and branding requirements for OEM and ODM projects.
5.What certifications does this relay have?
Products are manufactured under ISO9001 quality standards and comply with multiple international certifications including UL, TUV, CQC, CE, and RoHS, ensuring suitability for international market requirements.
KEYONG supports:
●OEM relay manufacturing
●Custom terminal solutions
●Sample testing support
●Technical selection assistance
●Fast production scheduling
●Global export service
If you are looking for a reliable China manufacturer of Miniature High Power Relay For Quick-connect and PCB Terminals, KEYONG provides professional technical support, stable production capacity, and responsive service for long-term cooperation.
